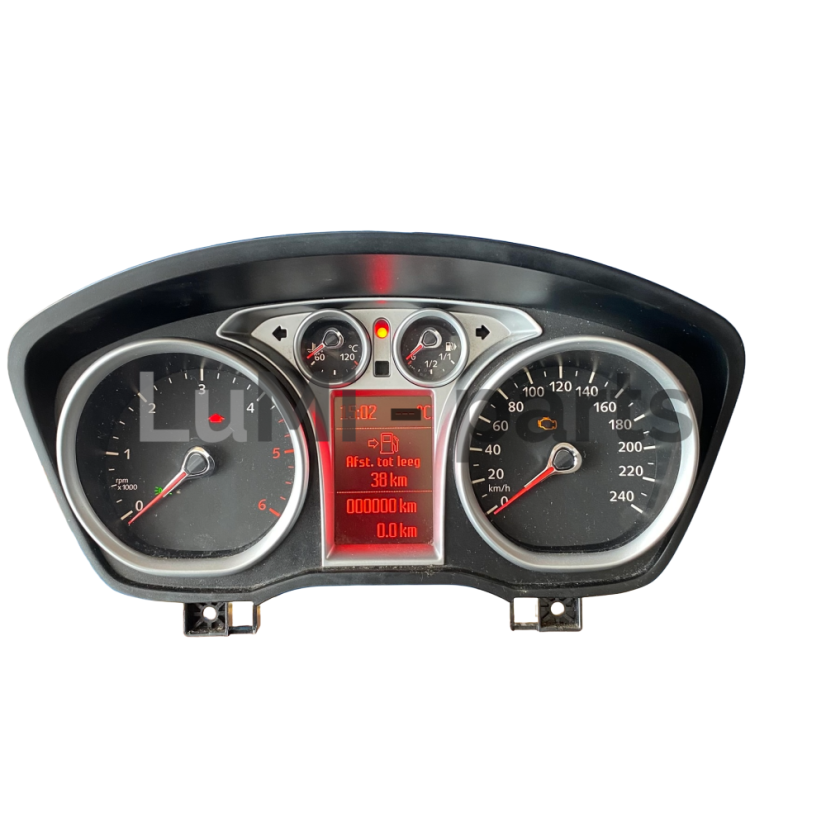

Dashboard Ford Focus MK2 (2008-2011), C-Max, Kuga

Speedometer / Instrument cluster

Preventatively soldered connector. A common fault with these dash board is a cold connection in this connector.

Total mileage status = 0

You can purchase a service for these instrument cluster from us: Software transfer from the original instrument cluster to the new one - Ford Focus MK2, C-Max, Kuga

Part number:

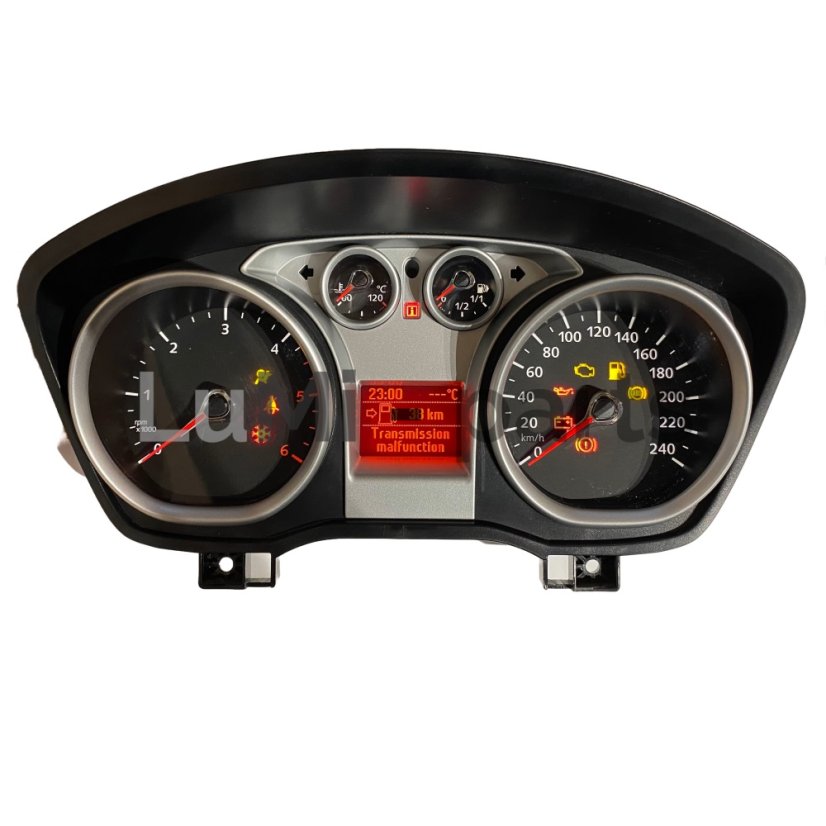

8V4T-10849-GK - diesel (small red LCD)

8V4T-10849-GF - diesel (small red LCD)

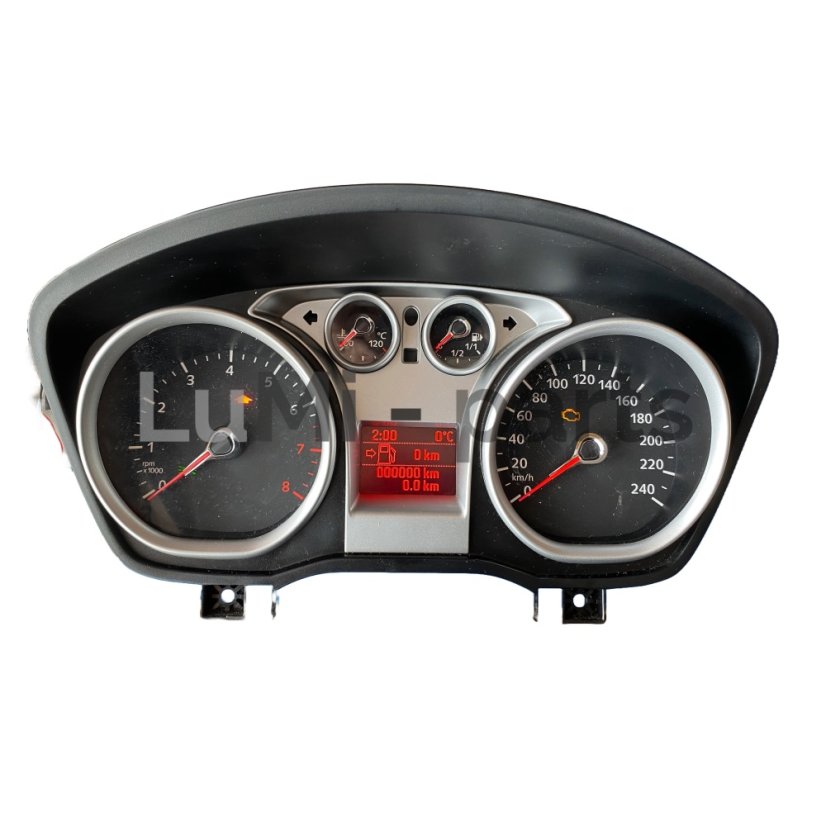

8V4T-10849-EF - Petrol (small red LCD)

Diesel Instrument cluster are interchangeable for all TDCI engines 1.6, 1.8, 2.0.

Petrol Instrument cluster are interchangeable for all Duratec engines 1.4, 1.6, 1.8, 2.0, 2.5.

It is also possible to replace petrol gauges with diesel gauges and vice versa. The tachometer range will then be shorter or longer.

The variant with a small red LCD displays the same information as the variant with a large red LCD, but you need to click multiple times to display all functions.

The specific part number will play a role. They can also be installed in pre-facelift models.
